Autoleveller

Hello,

Has anyone gotten AutolevelerAE to work correctly with UCCNC?

I've edited the custom cnc controller, but after the probing routing the spindle just hangs at Z 10 all the time.

Greetings,
Emile

Just a picture of the finest details I just got. In person it looks better than on the picture.
I'ts on the limit of the spindle runout and tool runout, I had to use some fine sandpaper to clean some of the rough edges.

2017-08-03 23.27.50(1)-large.jpg

Settings:
100mm/min (running slow, kept ...

Hello James,

I just tried the custom controller option in the new version.

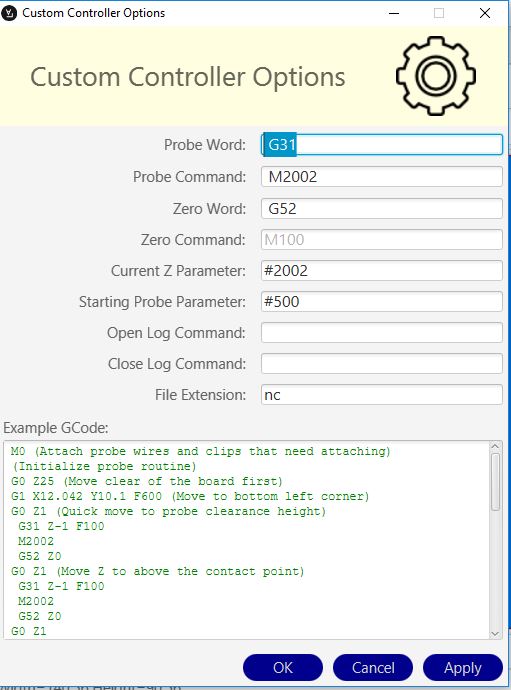

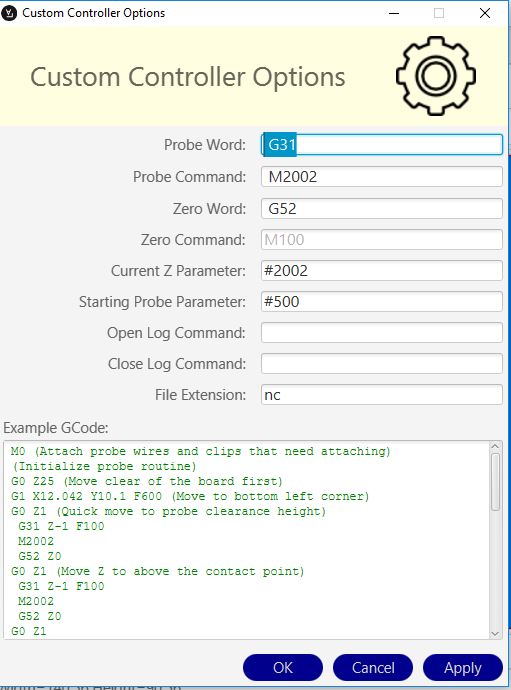

It worked great! I used the below settings, and that worked correctly on my XHC MACH3 IV USB controller. (CNC3020USB/CNC6040USB)

Thanks!

Greetings,

Emile

Hello,

I've had good results with contacting the guy that wrote the firmware in the past. ( Chao from XHC )
A few years back I had a problem with pecked drilling, and a few days later I got a fixed firmware from him.

The only problem is that they have moved on to a newer controller ( IV vs V ) and ...

AKG,

If you're 6040Z S80 1,5 kW uses the NcUsbPod.dll driver, which I think it does. Then maybe my post ''Aircuts on Mach3 USB NcUsbPod" provides a work around for some of the problems. (my usb controller box is from a 6040Z)

I had some of the same problems, and I found out that if you don't close ...

That would be a great addition, I'm looking forward for it!

Greetings,
Emile

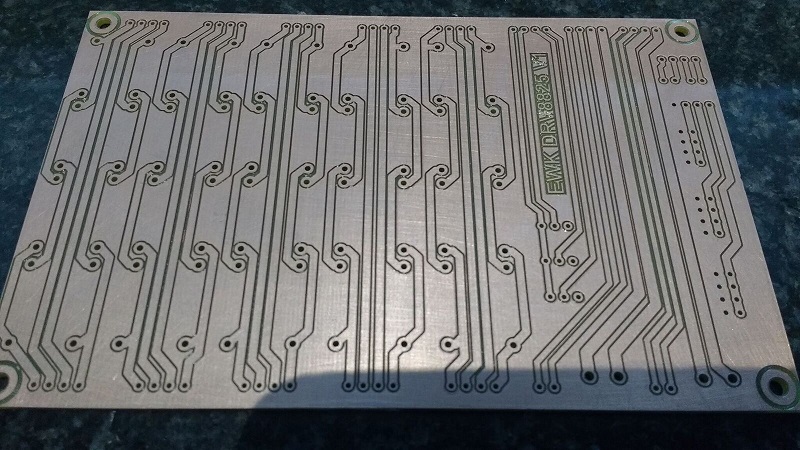

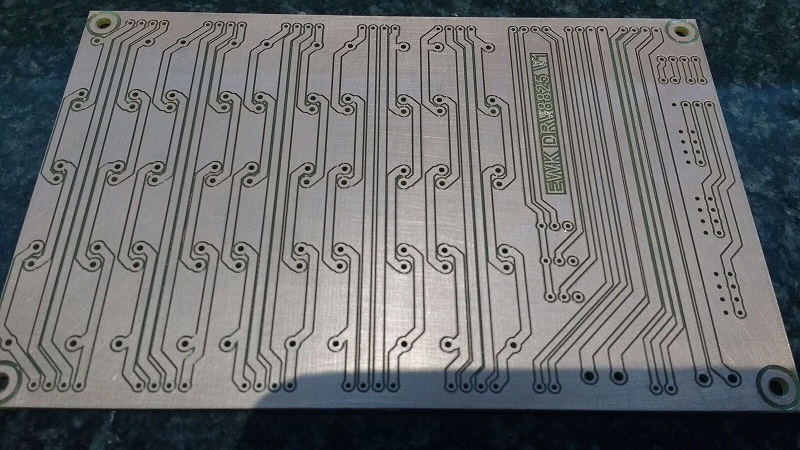

I've made some progress and cut my first pcb with AutolevellerAE.

Changes in the AL output file:

Replace both of the G92 Z0 entries with G52 Z0, with G92 the controller won't move the Z lower than Z0.

After each G31 command add call to macro routine M2002. (Got that idea from gskular on cnczone ...

Hello,

My mach3 controller seems to ignore the Z-1 part of the G31 Z-1 F100 probe command, it stops when it reaches Z0 and goes to the next point, only when the level is positive, it triggers the probe correctly.

Strange because I use the probe a lot with tool changes and there it functions ...

Hello Art,

Yes that also works as a work around. I fixed it by recreating the directory I just deleted.

Thanks,

Emile

Hello,

I'm currently having problems with aircuts (Z 280mm) with AutolevellerAE v0.8.4 where Autoleveller 0.7.7 works without a problem with the same setup.

I've generated a probe set:

-549.96875,-337.49063,180.48438
-549.96875,-337.49063,180.48438
-549.96875,-337.49063,180.48438
-549.96875 ...
